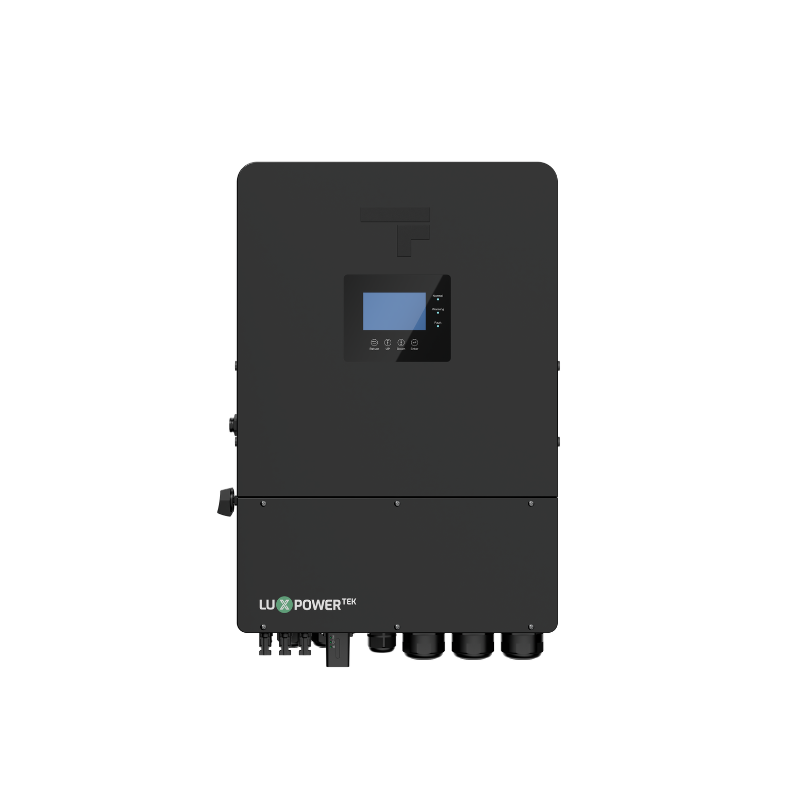

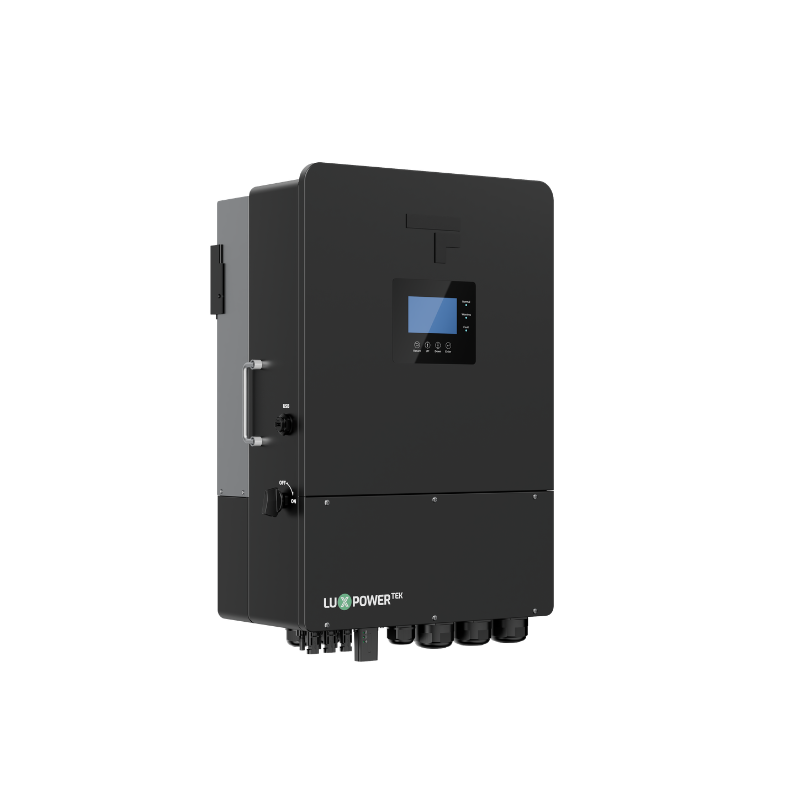

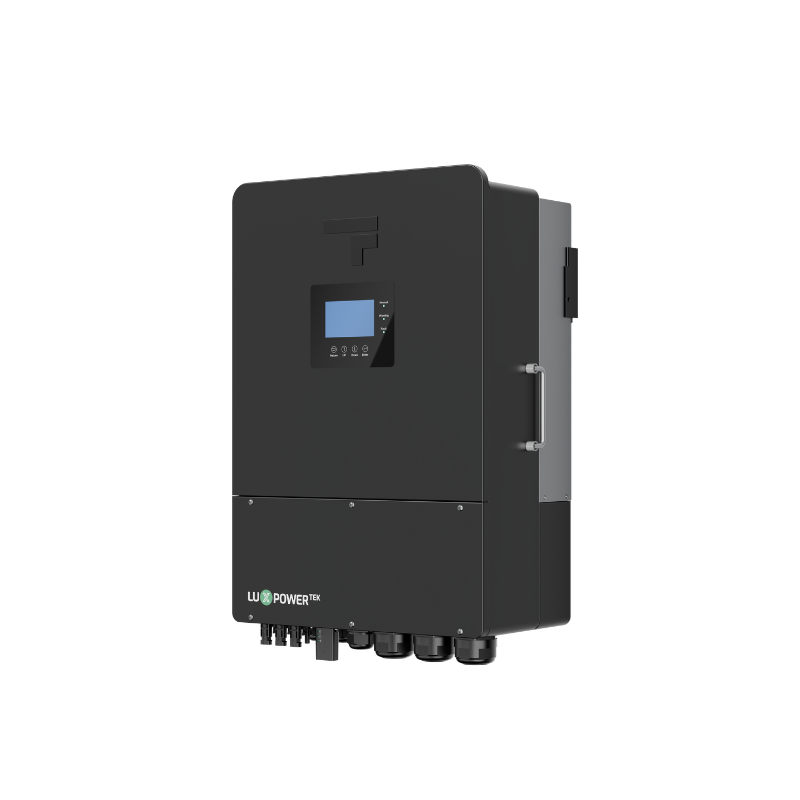

Fogstar x LuxpowerTek SNA 6K Off-Grid Inverter
The Fogstar x LuxpowerTek SNA 6K is a single-phase (230V) off-grid inverter built on proven LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems.
Built for off-grid systems, it delivers strong solar input performance, high battery throughput, and flexible system integration.
With dual MPPTs, generator support, and scalable parallel capability, it provides a complete solution for stable and efficient off-grid energy systems.
Built for Fogstar Battery Integration
• Stable BMS communication
• Accurate state-of-charge reporting
• Efficient charge and discharge control
Designed to work reliably with Fogstar Energy 48V (51.2V) battery systems.
Battery Pairings
Best overall: Fogstar Energy 10kWh
Highest-performance option: Fogstar Energy 16.1kWh or 16.1kWh ECO
Scalable option: 5.12kWh Rack Batteries
Key Features
• 6kW single-phase (230V) output
• Dual MPPT with up to 9.6kW PV input
• Up to 140A battery charge/discharge
• Seamless grid to off-grid switching
• Generator, AC coupling, and smart load support
• Parallel capability up to 18 units.
Performance & Reliability
• 6kW continuous output with high surge capability
• Fast switching (<7ms) for uninterrupted power
• Pure sine wave output for sensitive loads.
Monitoring & Installation
• Remote monitoring via the LuxpowerTek app
• RS485, Wi-Fi, and CAN communication
• Compact wall-mounted design
Dimensions: 330 × 505 × 135mm
Weight: 14.5kg
Ideal For
• Off-grid homes and cabins
• Backup and resilience systems
• Remote or unstable grid locations
• Hybrid solar installations.
➡️ Download the Specification Sheet
➡️ Download User Manual
Please note: Designed primarily for off-grid and backup power applications, the Fogstar x LuxpowerTek SNA range is ideal for powering cabins, workshops, remote buildings, off-grid homes, and energy backup systems.
Some references to grid-connected operation may appear within the documentation, as the inverter platform is used globally across multiple installation types and markets. The presence of these functions within the manual does not in itself confirm UK ENA approval for grid-parallel export operation. Installers should always verify the exact inverter model and firmware variant against the ENA Type Test Register for G98/G99 compliance prior to installation.
