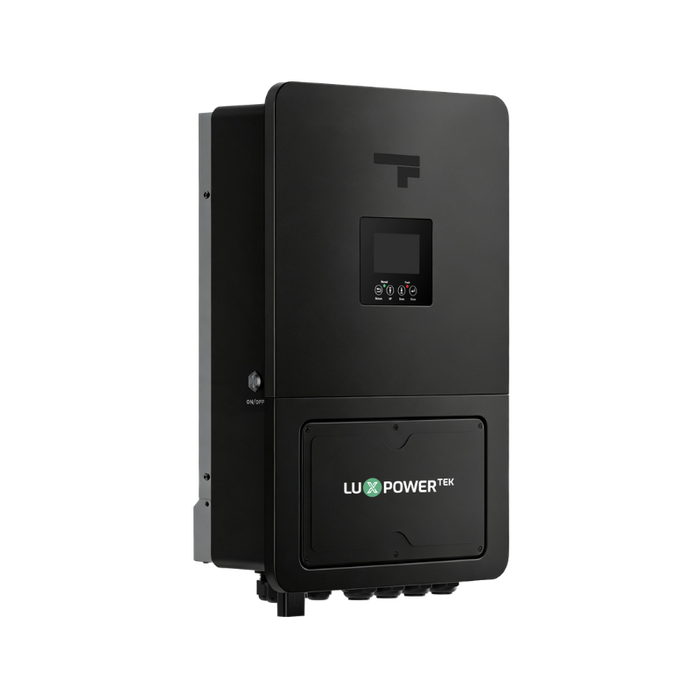

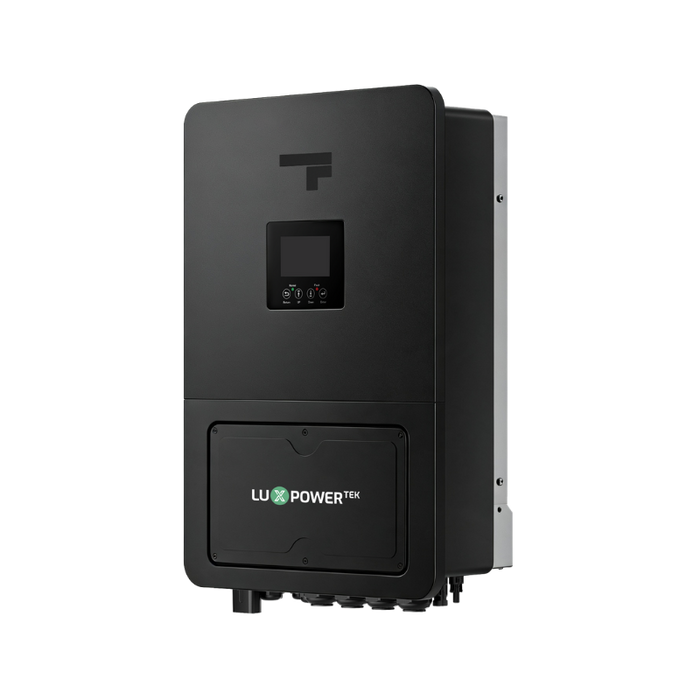

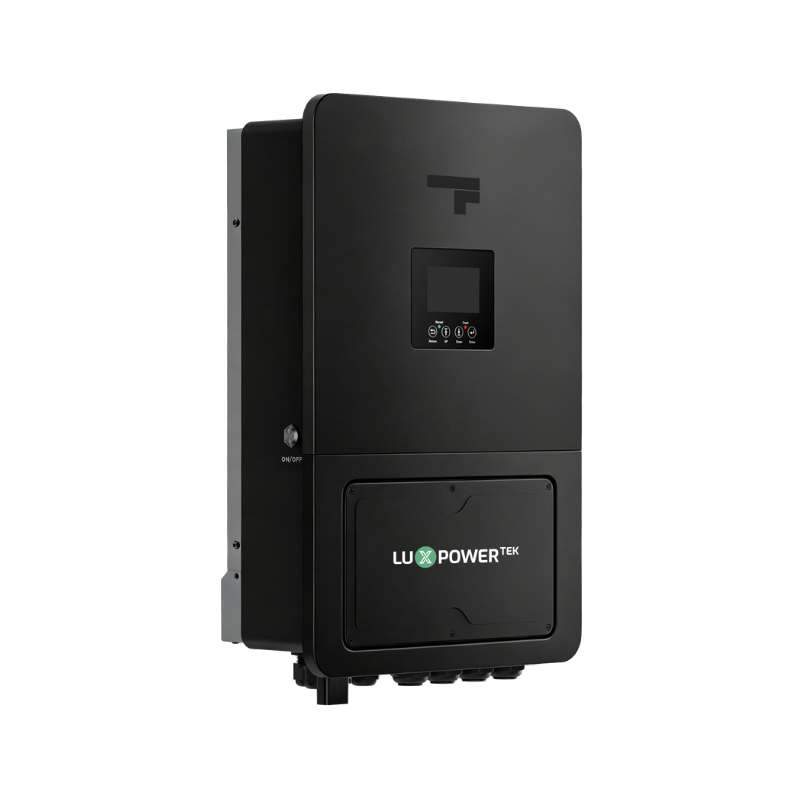

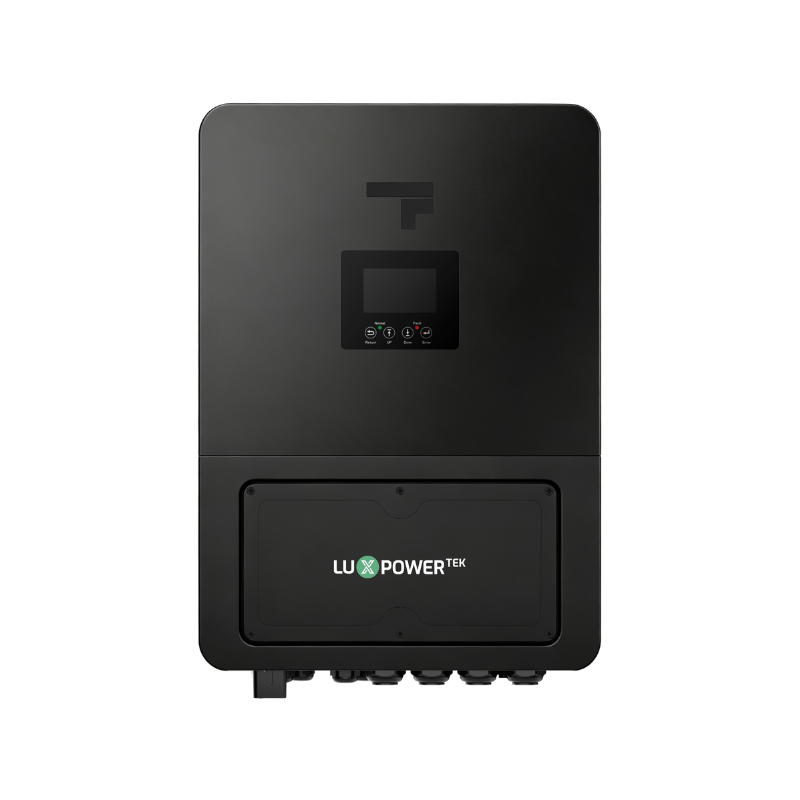

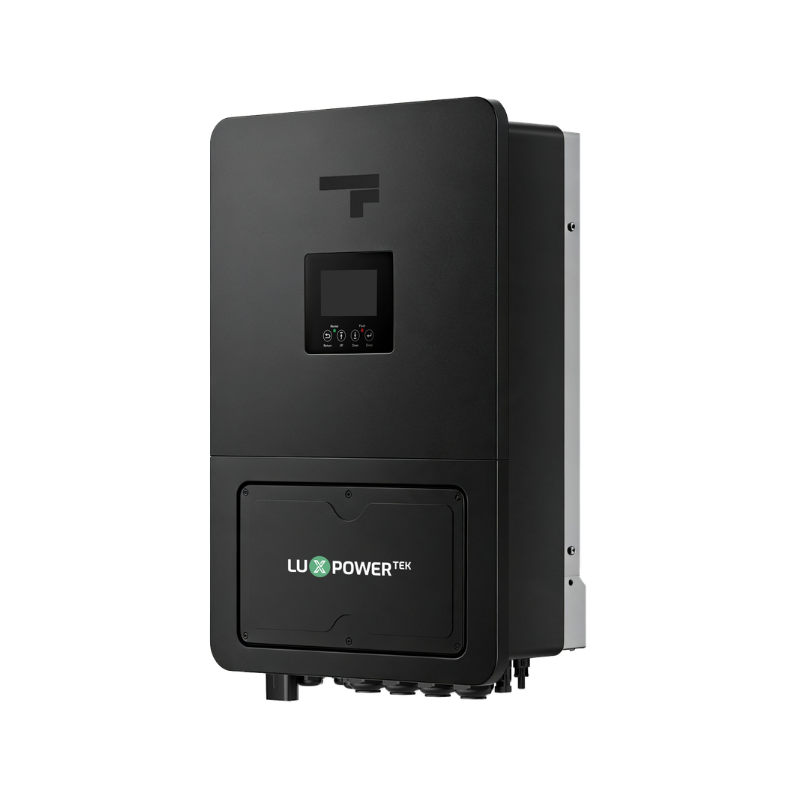

Fogstar x LuxpowerTek GEN PRO 8–12K (Single Phase Hybrid Inverter)
The GEN PRO-LB-EU from Fogstar is a range of hybrid inverters for single-phase (230V) systems, developed using next-generation LuxpowerTek technology and set up to integrate with Fogstar 48V (51.2V) batteries.
Offered with 8kW, 10kW and 12kW output options, the range is aimed at high-demand residential and light commercial energy systems.
Three independent MPPTs, a maximum PV input of 21kW, generator compatibility and the option to run up to 16 units in parallel make it a powerful, adaptable choice for on-grid, off-grid and backup installations.
Fogstar Battery Compatibility
• Stable communication with the battery BMS
• Accurate reporting of state of charge
• Efficient control of charging and discharging
Developed for reliable operation with Fogstar Energy 48V (51.2V) battery systems.
Always size battery capacity and discharge capability to suit the chosen inverter output and the anticipated system load.
Main Features
• Single-phase output options of 8kW, 10kW and 12kW
• Three independent MPPT inputs
• Maximum PV input of up to 21kW
• Battery charge and discharge current of up to 250A
• Supports generator input
• Seamless switching in 7ms
• Up to 16 units can be run in parallel
• Integrated Type II AC/DC surge protection
• Suitable for on-grid and off-grid use
• Warranty of up to 10 years
Output & Durability
• Continuous output power of up to 12kW
• Surge power at double the rated output for 10 seconds
• Maximum efficiency of up to 97.3%
• Battery force wake-up from PV, grid or generator
• 100A continuous AC passthrough
• IP66 enclosure suitable for indoor or outdoor installation
Installation & Monitoring
• Supports remote monitoring
• LCD display
• Communication via RS485, Wi-Fi and CAN
• Smart cooling system
• Wall-mounted design, built with installers in mind
Dimensions: 420 × 634 × 229.5mm
Weight: 27.2kg
Typical Applications
• Larger residential solar and battery storage
• Properties with high energy demand
• Backup and energy resilience systems
• On-grid and off-grid installations
• Light commercial energy storage
• Systems planned for future expansion
➡️ Download the Specification Sheet
Configuring the Power Rating
Set the power rating remotely via the LuxPower Monitor Centre, using your installer account. After it has been set, replace the inverter's rating label with the corresponding label supplied with the inverter. Our step-by-step guide covers the full process.
➡️ Download the Power Rating Guide
➡️ Download the G99 Report (8kW)
➡️ Download the G99 Report (10kW)
➡️ Download the G99 Report (12kW)
➡️ Download the G100 Document
