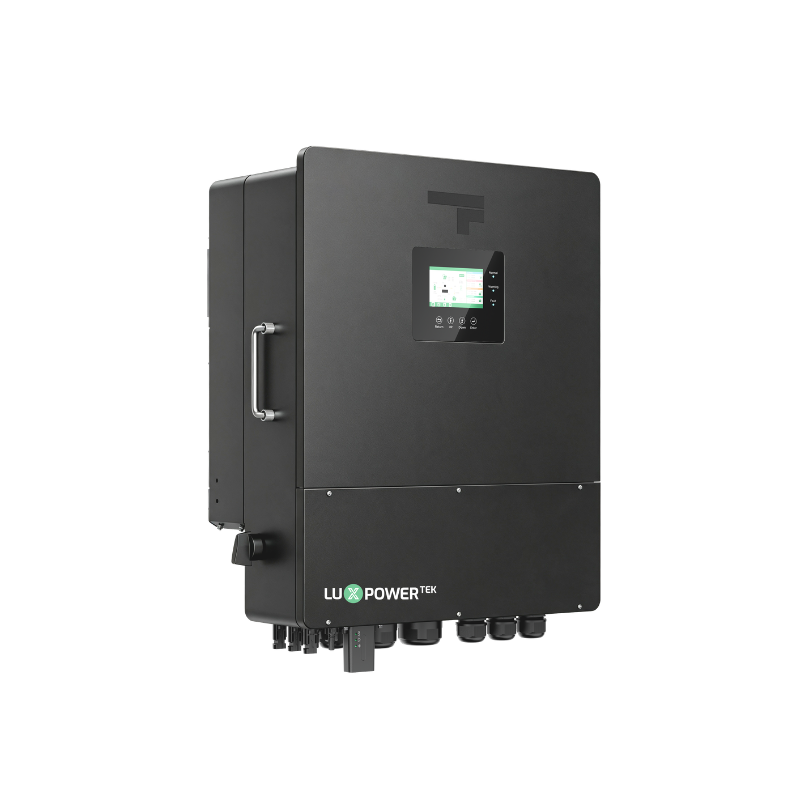

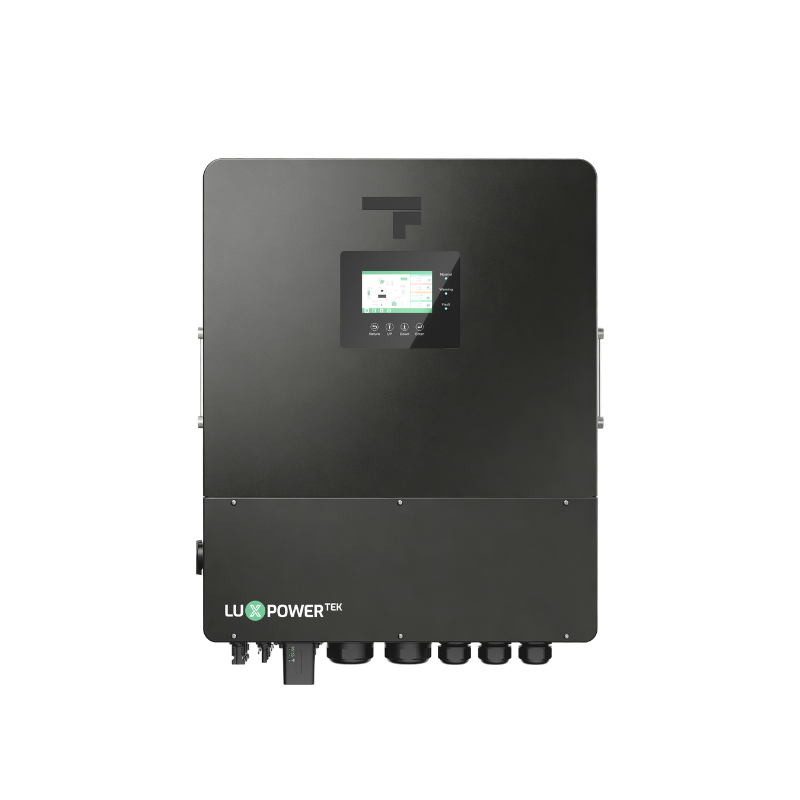

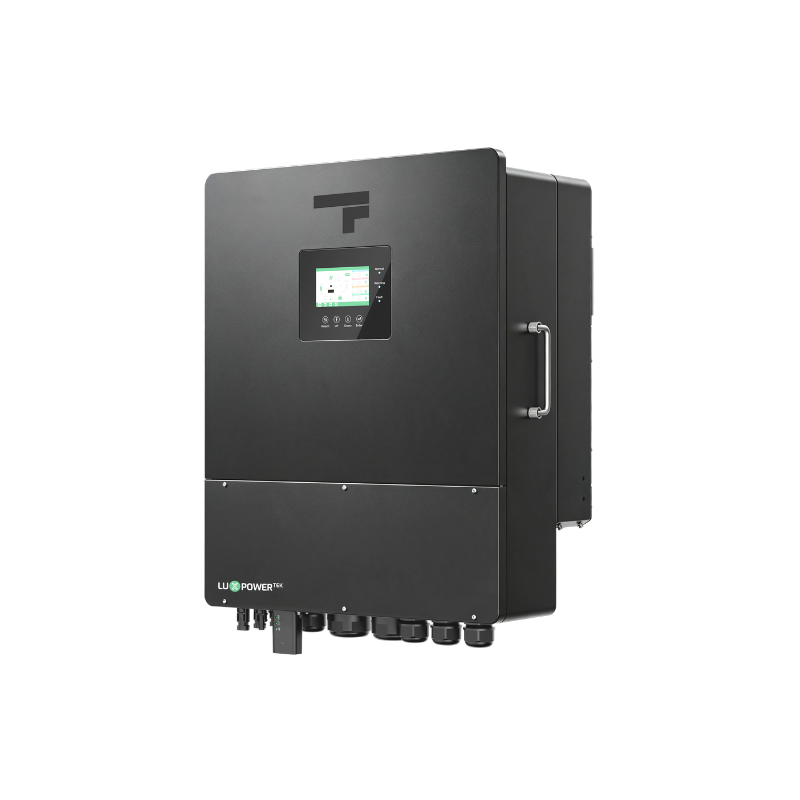

Fogstar x LuxpowerTek Gen2 14k (Single-Phase Hybrid Inverter)
The GEN2-LB-EU 14K from Fogstar x LuxPowerTek is a high-output hybrid inverter for single-phase (230V) systems, aimed at larger residential and light-commercial energy storage installations and set up to integrate with compatible Fogstar Energy 48V (51.2V) batteries.
Rated at 14kW of grid-connected AC output and 12kW of UPS / backup output, the GEN2-LB-EU 14K brings together high-capacity solar input, powerful battery charging, backup capability and generator integration in a single, robust IP66-rated unit.
Three independent MPPTs, a maximum PV input of 18kW, 250A battery charge and discharge current and the option to run up to 10 units in parallel make it an adaptable choice for demanding single-phase hybrid systems.
Fogstar Battery Compatibility
• Stable communication with the battery BMS
• Accurate reporting of state of charge
• Efficient control of high-current charging and discharging
• Battery communication via CAN and RS485
Developed for reliable operation with compatible Fogstar Energy 48V (51.2V) battery systems.
Always size battery capacity and discharge capability to suit the anticipated system load.
Main Features
• Rated grid-connected AC output of 14kW, single-phase (230V)
• Rated UPS / backup output of 12kW
• Three independent MPPT inputs
• Maximum PV input of up to 18kW
• Maximum battery charge and discharge current of 250A
• Battery charge and discharge power of up to 12kW
• Multifunction port for generator input, smart-load or AC-coupled operation
• Up to 10 units can be run in parallel
• 100A continuous AC passthrough
• IP66-rated enclosure
Output & Durability
• Rated UPS / backup output of 12kW
• UPS surge capacity of 2 × rated UPS output for 0.5 seconds
• Switching time below 7ms with a single inverter
• Switching time below 20ms in parallel systems
• MPPT efficiency of 99.9%
• Maximum efficiency of 95.1%
• Pure sine-wave output
• THDV below 3%
• Type III AC / DC surge protection
Generator Compatibility
• Generator connection via the multifunction port
• Generator input power of up to 18kW
• Rated generator input current of 80A
• Automatic generator start/stop control
• Generator exercise function
• Supports generator boost
Installation & Monitoring
• Colour touchscreen
• Communication via RS485, Wi-Fi and CAN
• Smart cooling system
• Battery force wake-up from PV, grid or generator
• Wall-mounted installation
Dimensions: 566mm (L) × 275mm (W) × 653mm (H)
Weight: 48kg
Operating Temperature: -25°C to 60°C (derating above 45°C)
Noise Emission: <55dB
Typical Applications
• Larger residential solar and battery storage
• Demanding single-phase installations
• Light-commercial energy storage
• Installations supported by a generator
• Backup and energy resilience systems
• Systems planned for future parallel expansion
➡️ Download the Specification Sheet
➡️ Download the G99 Report (14kW)
➡️ Download the G100 Document
