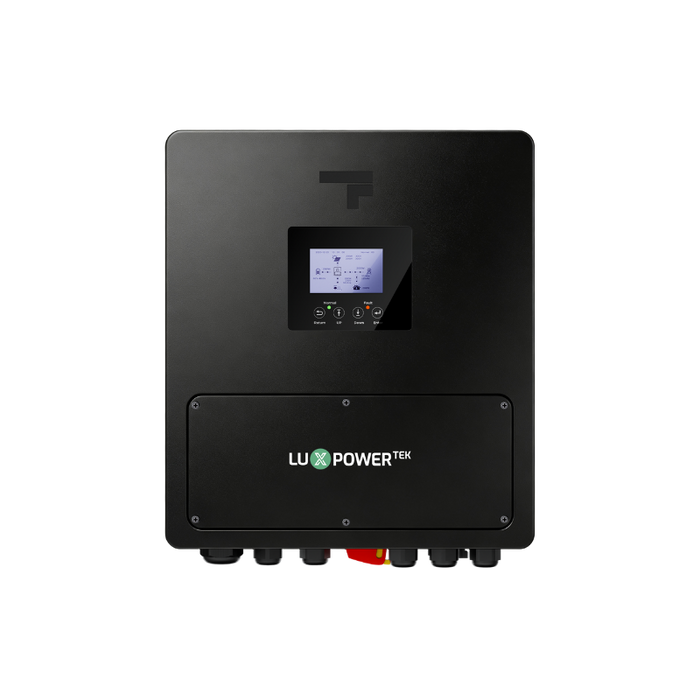

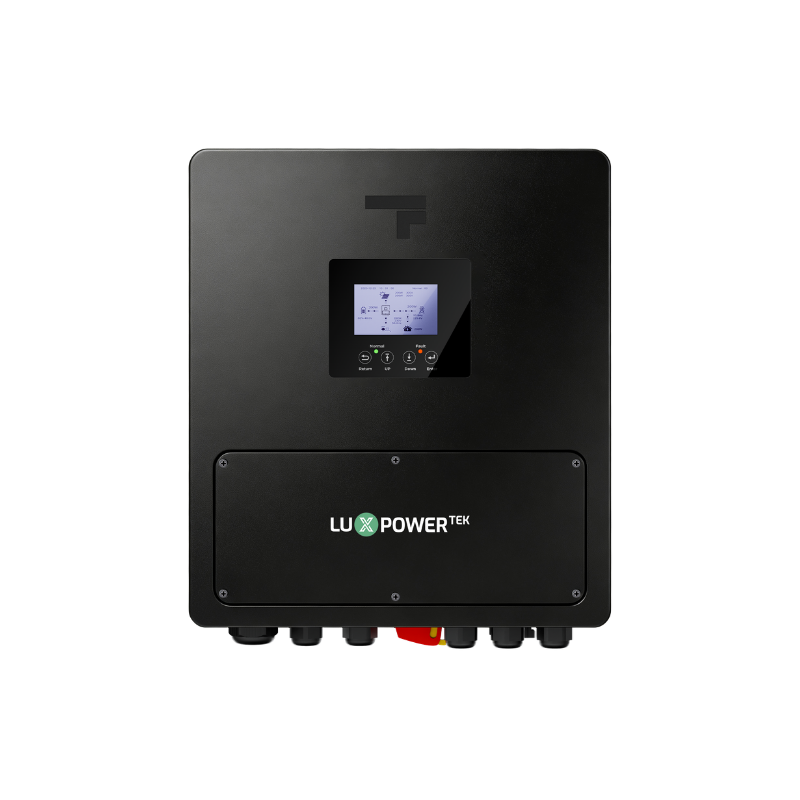

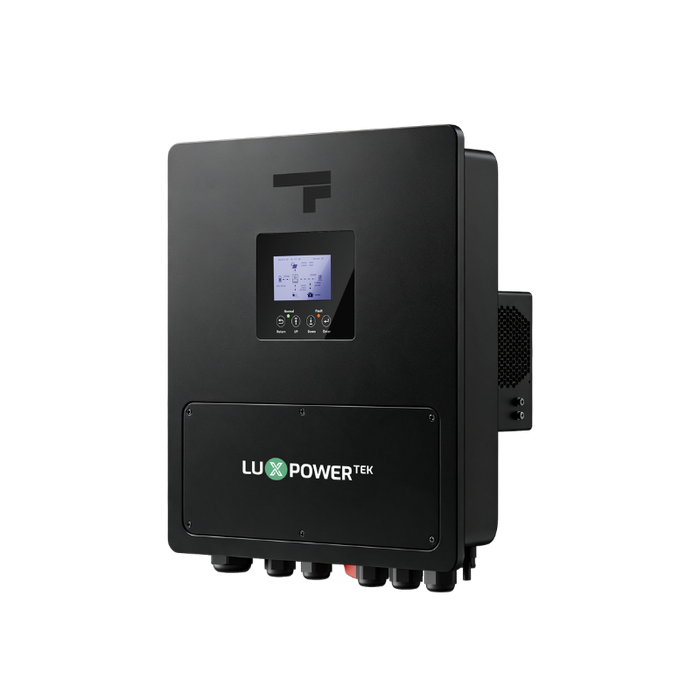

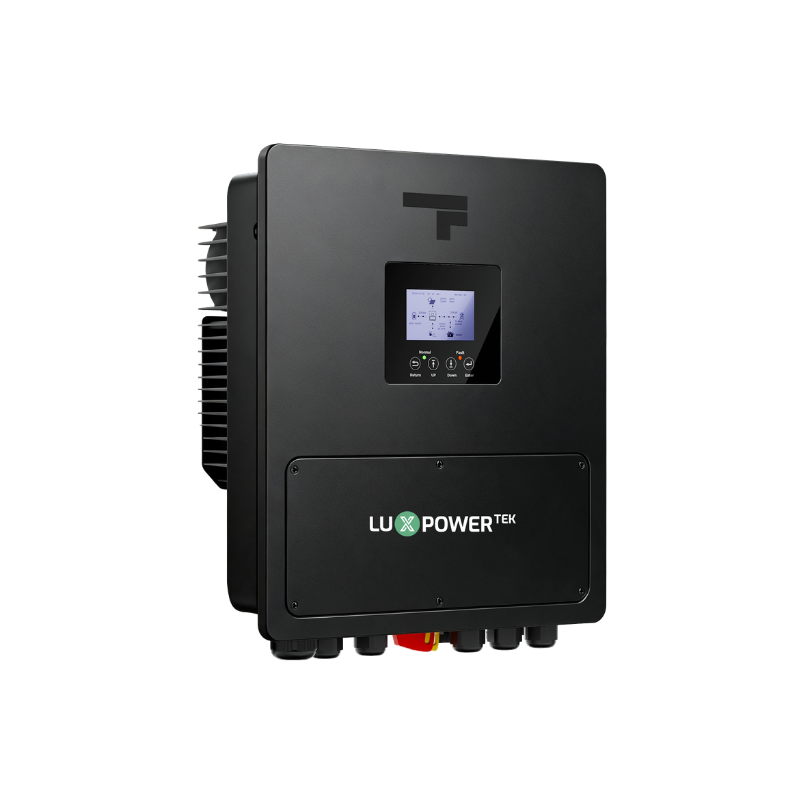

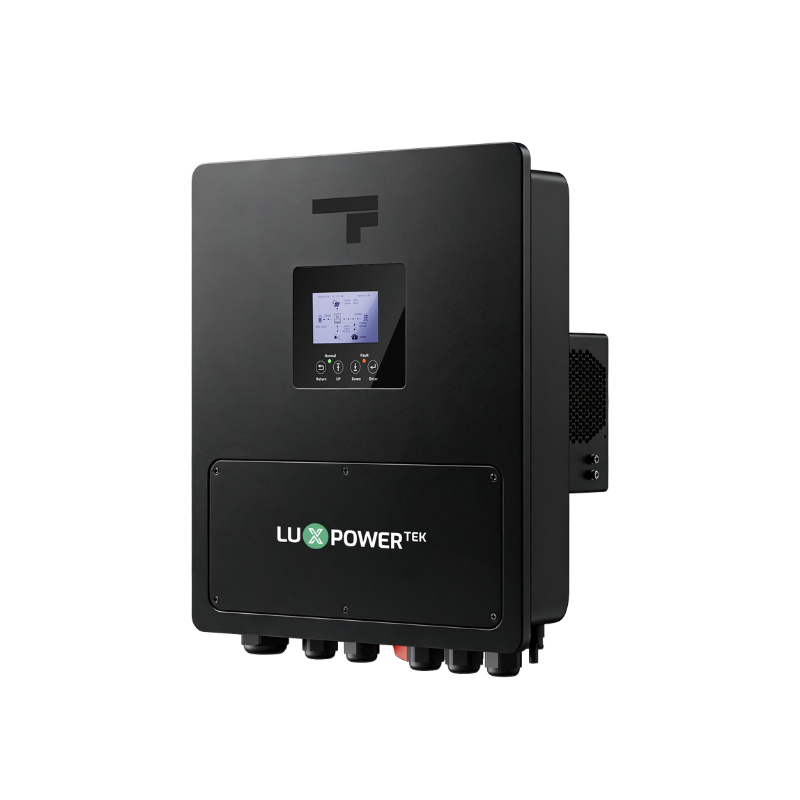

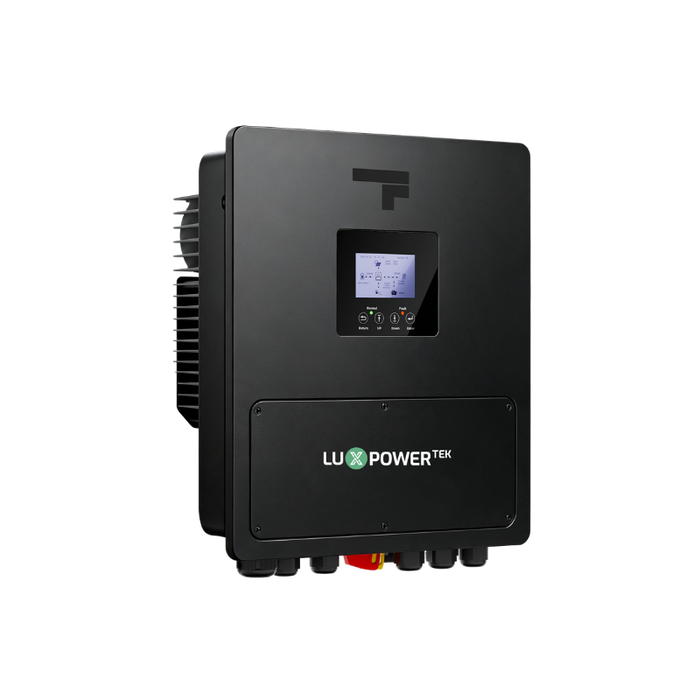

Fogstar x LuxpowerTek SNA PRO-EU 6.5K (Off-Grid Inverter)
The SNA PRO-EU 6.5K from Fogstar is an off-grid inverter for single-phase (230V) systems, developed using proven LuxpowerTek technology and set up to integrate with Fogstar 48V (51.2V) batteries.
With a continuous output of 6.5kW, it suits off-grid properties, demanding installations and backup power applications.
Two MPPTs, a maximum PV input of 12kW, generator compatibility and the option to run up to 16 units in parallel make the SNA PRO-EU a capable, adaptable platform for off-grid system design.
Fogstar Battery Compatibility
• Stable communication with the battery BMS
• Accurate reporting of state of charge
• Efficient control of charging and discharging
Developed for reliable operation with Fogstar Energy 48V (51.2V) battery systems.
Main Features
• Single-phase (230V) output of 6.5kW
• Dual independent MPPT inputs
• Maximum PV input of 12kW
• Compatible with PV arrays of up to 15kW
• Charge current up to 135A, discharge current up to 140A
• Dedicated connection for a generator or smart load
• Seamless switchover from grid to off-grid operation
• Up to 16 units can be run in parallel
• IP66-rated enclosure
• 5-year warranty
Output & Durability
• Continuous output power of 6.5kW
• Surge power of 13kW for 5 seconds
• Maximum efficiency of up to 96.9%
• Battery force wake-up from PV, grid or generator
• 60A continuous AC passthrough
• Noise emission below 40dB
• IP66 enclosure suitable for indoor or outdoor installation
Installation & Monitoring
• Supports remote configuration and performance monitoring
• LCD and LED display
• Communication via RS485, Wi-Fi and CAN
• Smart cooling system
• Wall-mounted design, built with installers in mind
Dimensions: 384 × 434 × 187mm
Weight: 16.95kg
Typical Applications
• Residential off-grid power systems
• Rural, commercial and agricultural sites
• Demanding off-grid installations
• Backup and energy resilience systems
• Systems planned for future expansion
Please note: the SNA PRO-EU is an off-grid inverter and is not intended for exporting to the grid.
