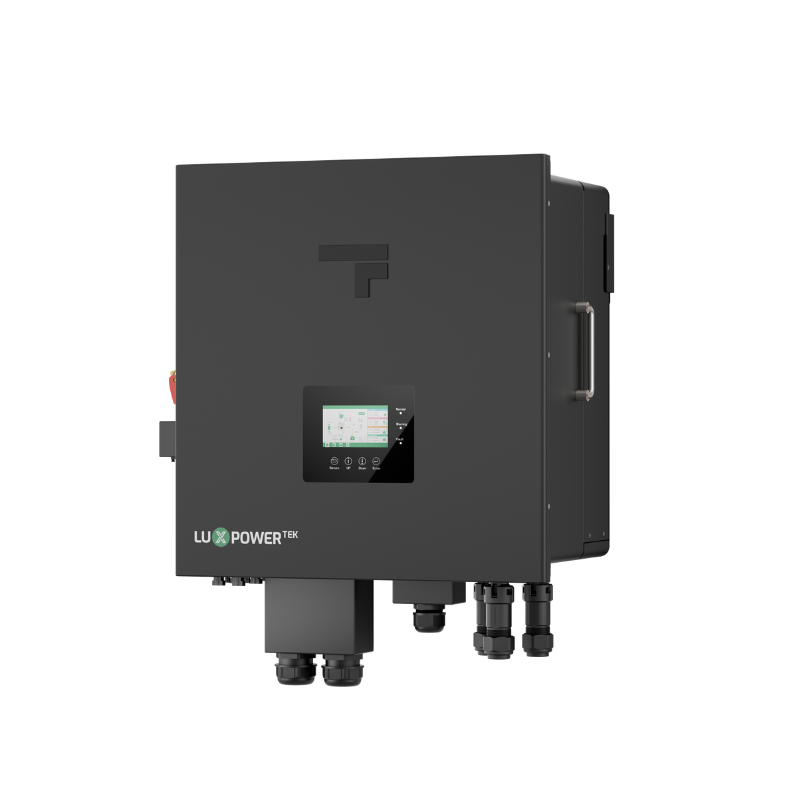

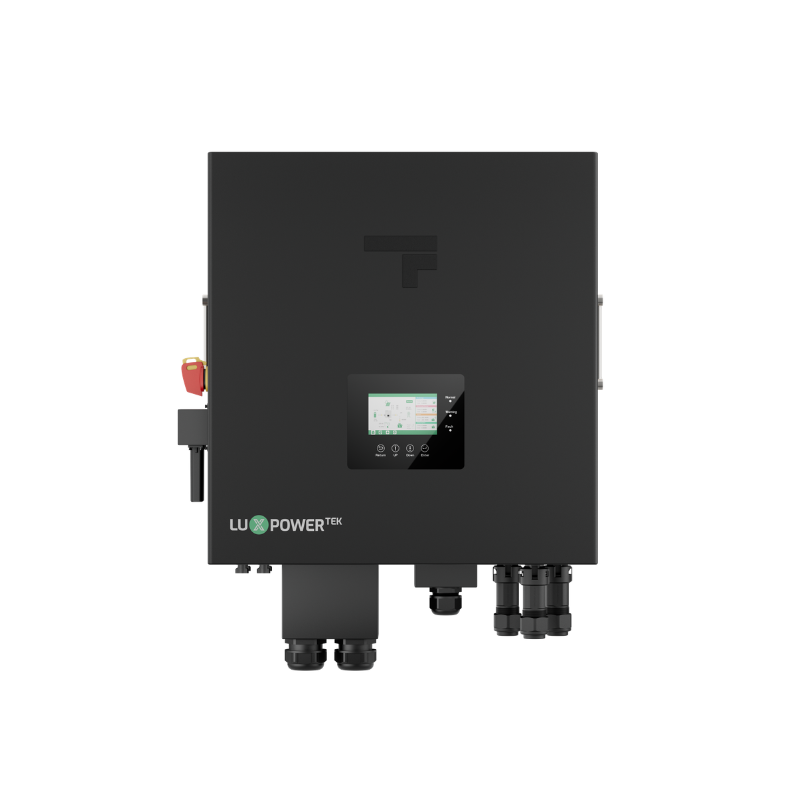

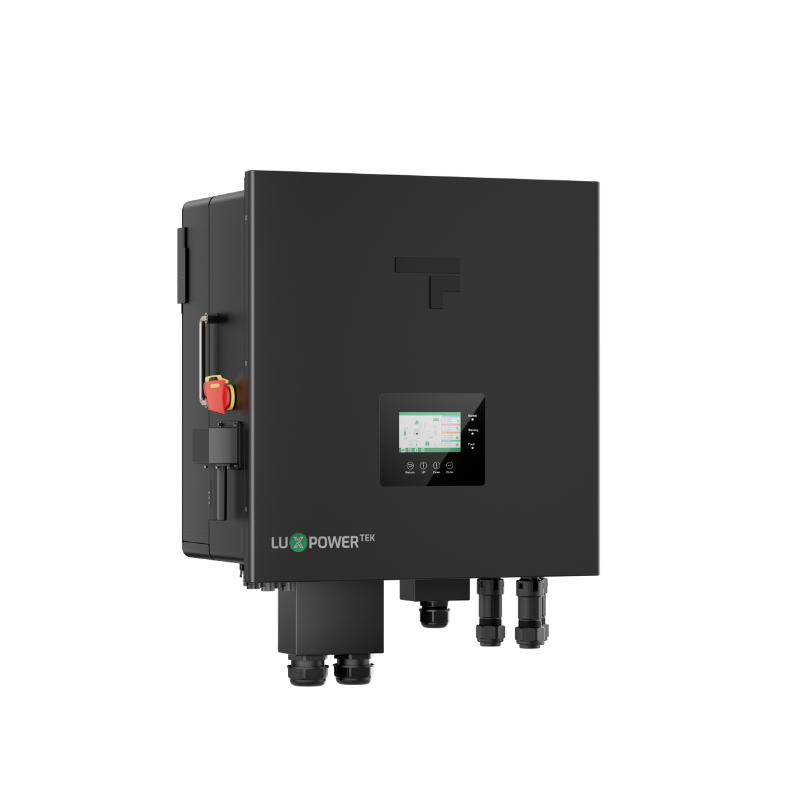

LuxpowerTek GEN-LB-EU 10K (Single Phase Hybrid Inverter)
The Fogstar GEN-LB-EU 10K is a single-phase (230V) hybrid inverter built on proven LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems.
Built for both on-grid and off-grid operation, it combines powerful solar generation, advanced battery integration and intelligent energy management within a compact, installer-friendly platform.
With dual MPPTs, generator support, weather-based optimisation and scalable parallel operation, it provides a flexible solution for modern energy storage installations.
Built for Fogstar Battery Integration
• Stable BMS communication
• Accurate state-of-charge reporting
• Efficient charge and discharge control
Designed to work reliably with Fogstar Energy 48V (51.2V) battery systems.
Battery Pairings
Minimum setup: Fogstar Energy 48V 10kWh Battery
Recommended: Fogstar Energy 48V 16.1kWh Battery
Full headroom: Fogstar Energy 48V 32kWh Battery
Key Features
• 10kW single-phase (230V) hybrid output
• Dual MPPT with up to 15kW PV input
• Up to 208A battery charge/discharge
• Dedicated generator port with automatic control
• Time-of-use tariff optimisation
• Parallel capability up to 10 units
Performance & Reliability
• 10kW continuous output power
• Up to 97.5% maximum efficiency
• Intelligent backup power functionality
• Force wake-up from PV support
• IP66-rated enclosure for indoor and outdoor installations
Monitoring & Installation
• Remote monitoring via the LuxpowerTek app

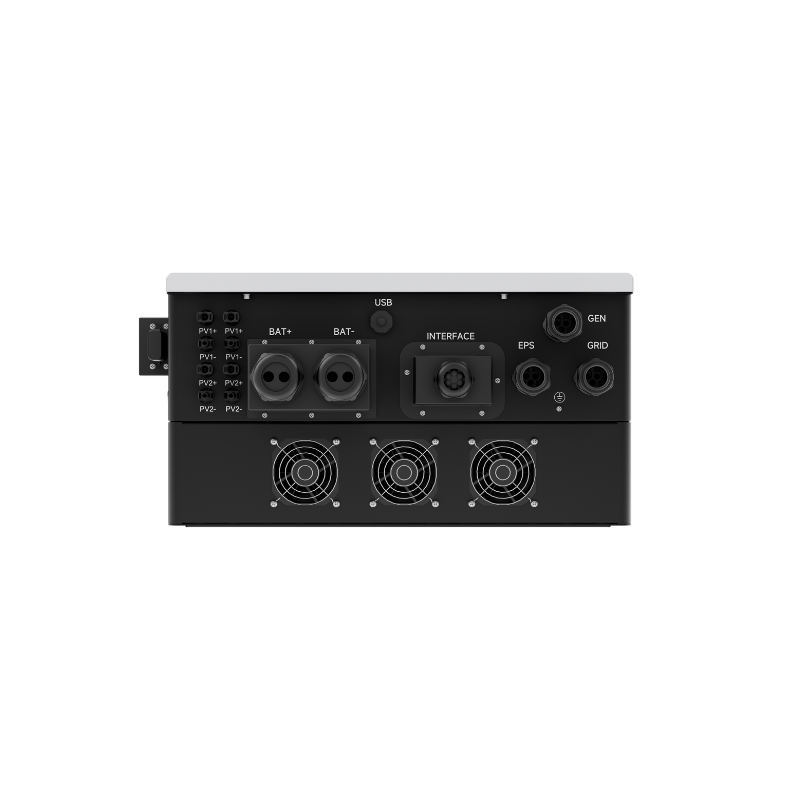

• RS485, Wi-Fi, and CAN communication
• Installer-friendly wall-mounted design
Dimensions: 536 × 566 × 290mm
Weight: 42.64kg
Ideal For
• Residential solar and battery storage systems
• Larger homes with higher energy demands
• Backup and resilience systems
• On-grid and off-grid installations
• Light commercial energy storage applications
